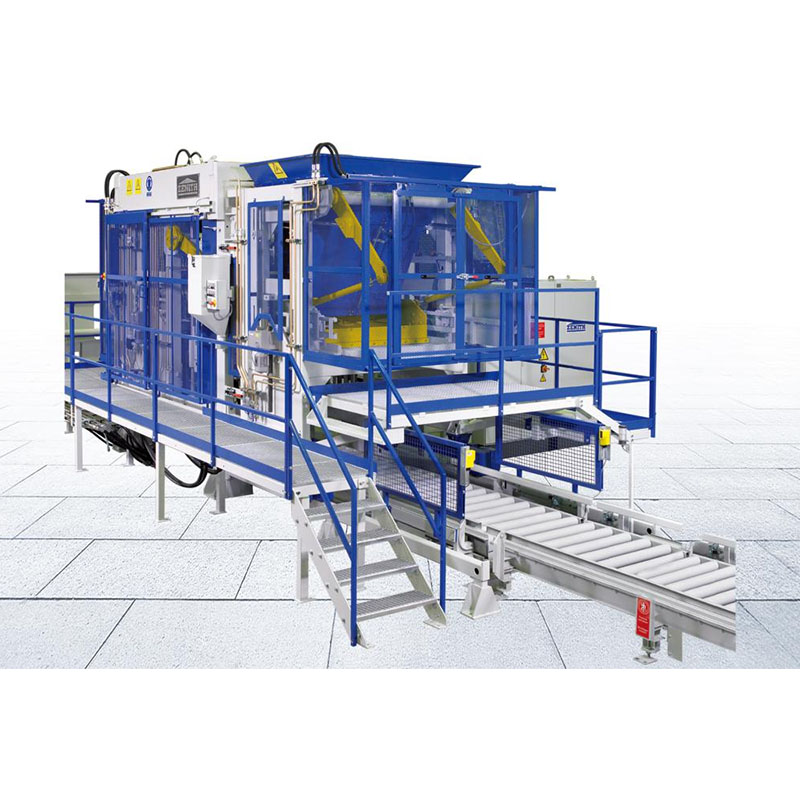

Block Making Machinery is a fully automatic stationary block machine,unique multilayer production for pavers/interlocks. Designed for products ranging from 50mm to 500mm height. When production is focused on interlocks/pavers/paving stones, ZENITH 844 is far superior to single pallet plants, concerning the price-performance ratio, duration of installation and simplified handling.The multi-purpose molding machine can produce more than 10 different specifications of unfired bricks such as hollow blocks, porous bricks, and standard bricks by changing the mold. Pneumatic transmission is used to control the blanking, forming and exporting to be completed continuously. The operation is safe and stable and easy to maintain.
Product Features
Zenith 844 is an outstanding representative of the multilayer block production equipment for concrete paver, interlock and similar products in the world. It has the advantages of high performance, high output, high quality and high cost efficiency. As the research result of advanced technology of Zenith Company for decades, Zenith 844 adopts many latest technologies,such as visual menu navigation, which has the characteristics of simple operation and low maintenance cost.

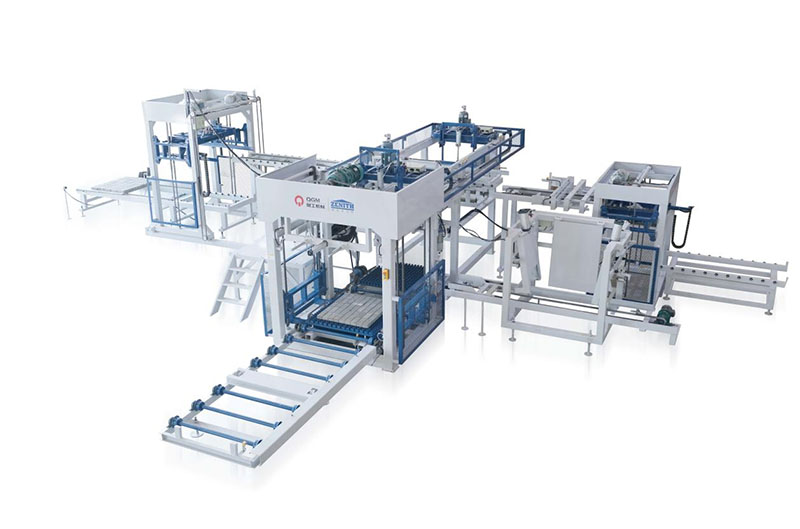

Zenith 844 adopts a modular production system, and all processes from raw materials to finished products (direct handling) can be fully automatic.This machine is specially designed to produce concrete products with 50mm to 500mm heights, and can easily produce high-quality interlock/paver, curbstone and other cement block products. Compared with the single pallet machine, the palletizing of Zenith 844 finished products meets the requirements of direct transportation, which is easier in installation, operation and transportation, greatly saves time,labor and material costs, and has superior performance.
Technical Parameters
| Machine Parameters | |
| Product Height | |
| Max | 500 mm |
| Min. | 50 mm |
| Max. Cube Height | 640 mm |
| Max. production Area | 1240x1000 mm |
| Pallet Size (standard) | 1270x1050x125 mm |
| Base-mix Hopper Volume | About 2100 L |
| Machine Weight | |
| With face-mix Device | About 16 T |
| Conveying device, operating platform, hydraulic station, pallet bin, etc. | About 9 T |
| Machine Dimensions | |
| Max. Total Length | 6200mm |
| Max. Total Height | 3000mm |
| Max. Total Width | 2470mm |
| Machine Technical Parameters/ Consumption | |
| Upper Vibration | Max35KN |
| Total Hydraulic Flow | 83L/min |
| Working Pressure | SC180bar |
| Maximum Power | Standard 50KW 66KW |
| Control System | Siemens S7-1500（CPU317）SC |
